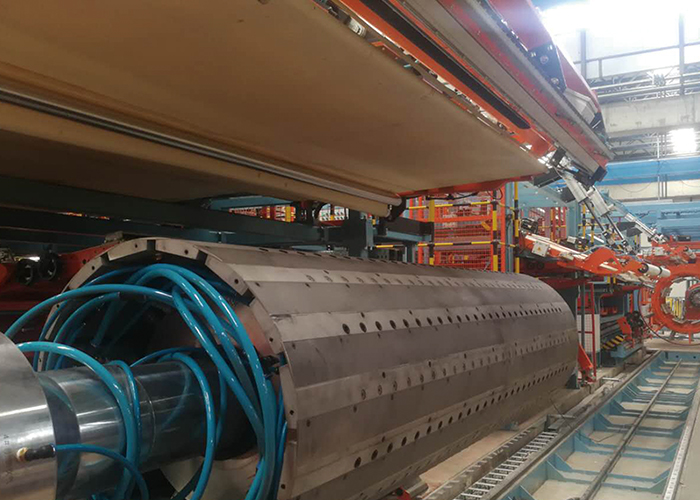

All Steel OTR TWO-STAGE Tyre Building Machine

All Steel OTR Two-Stage Tire Building Machine mainly consists of a bonding drum and chassis, shaft support, turn-up drum and chassis, tailstock, carcass band transfer ring, bonding drum stitcher, turn-up drum stitcher, 1st stage servicer,transfer trolley for 1st and 2nd stage embryo, belt drum and chassis, tread servicer, belt composite component transfer ring, belt servicer, belt stitcher, shaping drum stitcher, two sets of shaping drums and rotating chassis, tire unloading transfer ring, tire unloading device, etc

Features:

1、Optimize the layout of equipment to cover smaller area.

2、From the 1st to 2nd stage embryo transfer adopts automatic transfer to improve efficiency.

3、The 2nd stage tire unloading adopts automatic flipping tire unloading, reducing the labor intensity of operators and improving efficiency.

4、The servicer adopts a seamless design of conveyor belt, optimizes the structure, reduces the complexity of the servicer, and lowers the maintenance cost of the equipment in the later stage.

5、The centering device of the servicer needs to achieve no limit for , and the replacement of production tire specifications does not require adjustment to ensure stable  effect for rectify deviation.

6、The device of turn-up and turn down adopts a roller design, greatly reducing the replacement cycle of finger shaped vulnerable parts and improving work efficiency.
