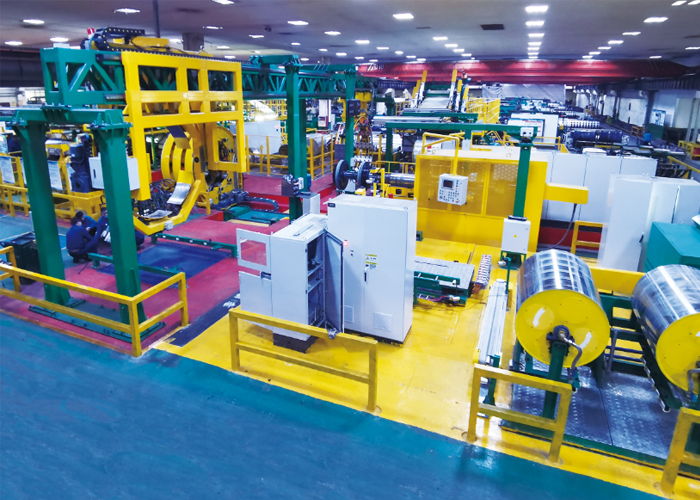

Purpose: Used for agriculture radial tyre building.
Features: PLC, the central control of the system, has the functions of realizing program operation, monitor,alarming and communication.
Major parameters:
FIRST STAGE：
| Type | LCY－n1622.5 | LCY－n2442 | LCY－N3854 |
Diameter of building drum(mm) | 420-620 | 686-1168 | 1050-1450 |
Width of building drum(mm） | 360-600 | 480-1450 | 600-1750 |
Specification of bead (in) | 16″-22.5″ | 24″-42″ | 38″-54″ |
SECOND STAGE：
| Type | LCY－n1630 | LCY－n2442 | LCY－N3854 |
Width range of shaping drum(mm) | 150-650 | 200-1500 | 200-1800 |
Diameter of belt drum(mm) | 700-1400 | 800-1950 | 1200-2100 |
Belt width (mm) | 200-550 | 350-800 | 450-1350 |
| Specification of bead (in) | 16″-30″ | 24″-42″ | 38″-54″ |
