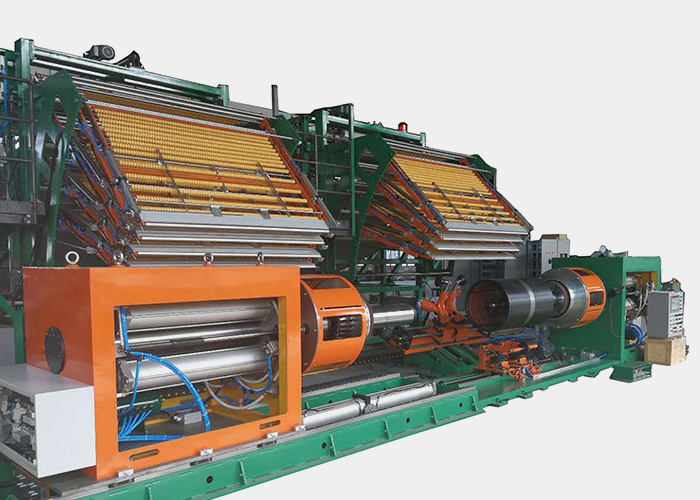

Purpose: Used for bias green tyre building
Features:
1.Adopts finger Turn-down and bladder Turn-up device
2.Has dynamic collapsing drum device
3.Adopts air cushion dragging device to apply band with locating precise. lower band distortion, even density
4.Adopts PLC program control
Major parameters：
| Type | LCX－ZJ0810 | LCX－ZJ1214 | LCX－ZJ1516 | LCX－ZJ1820 |
Diameter Of the drum (mm) | 250-350 | 340-490 | 450-540 | 570-690 |
Width of the drum (mm) | 720 | 230-530 | 470-600 | 510-680 |
Max. width of the band (mm) | 1850 | 850 | 900 | 1150 |
Specification of bead (in | 8″-10″ | 12″-14″ | 15″-16″ | 18″-20″ |
Shaft dia. matched with the drum (mm) | φ40 | φ50 | φ50 | φ90 |
| Type | LCX－ZJ2425 | LCX－ZJ25 | LCX－ZJ2933 | LCX－ZJ3335 |
Diameter Of the drum (mm) | 690-826 | 770-920 | 1060-1168 | 1000-1300 |
Width of the drum (mm) | 500-1200 | 700-1260 | 950-1700 | 1000-1700 |
Max. width of the band (mm) | 1850 | 2020 | 2425 | 2600 |
Specification of bead (in | 24″-25″ | 25″ | 29″-33″ | 33″-35″ |
Shaft dia. matched with the drum (mm) | φ120 | φ140 | φ160 | φ160 |
